Die Cut Parts

Gaskets and other die cut parts produced from a wide range of rubber, plastic, paper, fabric, film, and composite materials.

Ames Industrial has extensive die cutting services available at our facility. From small sample runs to full high volume production, we can meet all of your die cutting needs.

We use flat bed die cutters to maintain accuracy and our high standards. A flat bed die cutter has essentially two parallel metal platens in between which the die and material are placed. When the press is cycled, the metal platens come together, exerting pressure on the die and cut out the part.

If your material comes on a roll there is no need to have it sheeted, as our presses can handle sheet or roll fed stock, thereby saving you, the customer, time and money. Close registration and large size die cutting are our specialty.

High Speed Preco Press

State of the art high speed programmable cutting equipment allows for economical higher volume production runs, with precision accuracy.

• Ideal for close registration processes.-
• Multiple cavity dies.
• Laser cut dies for close tolerances.
• Dies made to order from specs, prints, or reverse engineered from samples.
• Faster set-up and increased accuracy wastes less time and materials.
• Memory storage for quick response to reorders.
• Compensates for off-centered artwork, and skew.
• Works with materials in strip, sheet or roll format.
• Kiss cut, cut-through or combination applications.
• PRECO presses accept steel ruled, male/female, combination, and machined or chemically etched dies.

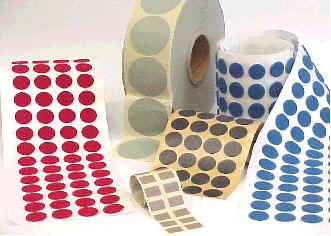

Kiss Cutting

• Allows for peel and stick roll manufacturing
• Close Tolerances
• Close Registration for Higher Yeilds.

Custom Dies

All steel rule dies are cut with a high accuracy CNC laser. Tooling tolerances as close as .005"
